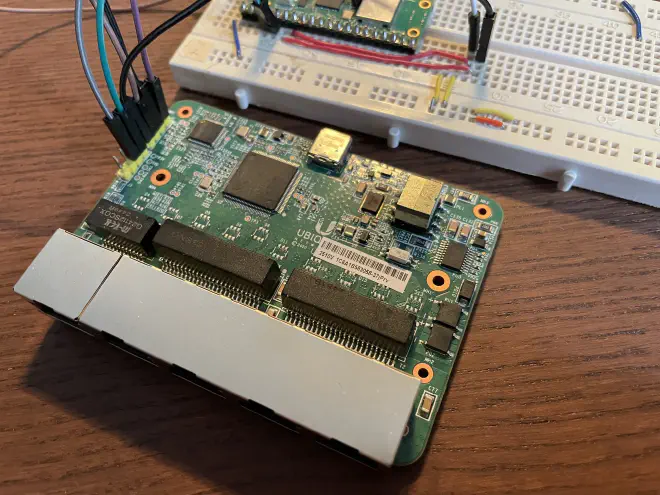

Deeper dive into the Ubiquiti USW Flex Mini

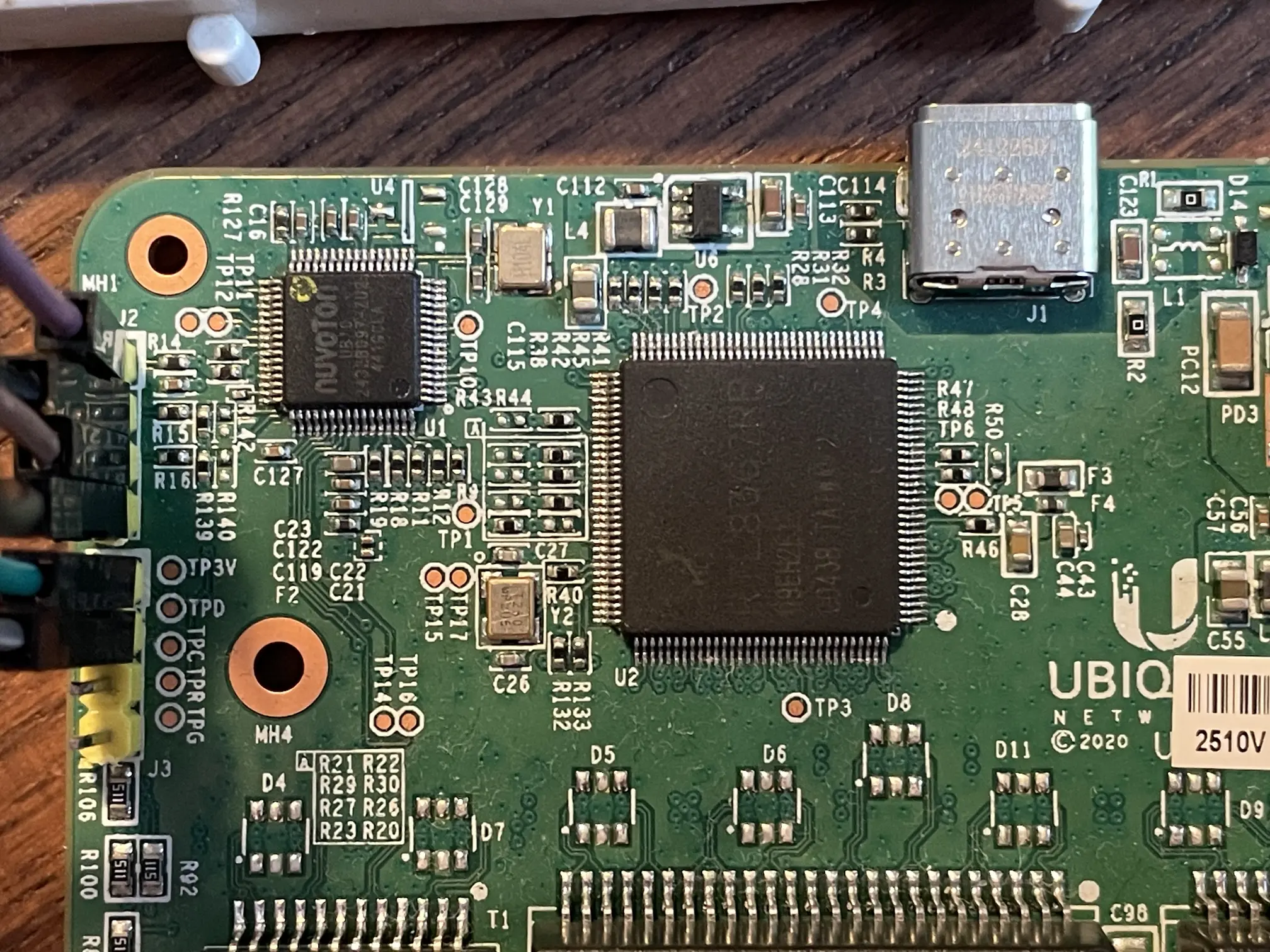

The board has a chip that looks like the MCU of the board but this chip only has the marking Nuvoton / UB10 (or U810), which does not help as there is no trace of the chip online (except Jades blog).

The used switch IC is the RTL8367RB which has no official public documentation but LCSC has the chip, including a datasheet which just states internal :). Using this datasheet it was easy to discover where there are likely connections from the switch IC to the (at this point still unidentified) MCU using the MII / RMII interface.

Using SWD I dumped the firmware through a connected gdb an dump binary memory as I did not yet have a discovered flash driver I could use to directly access the Flash. At Some point I also hacked together a OpenOCD that works with both Nuvoton and the pico debugprobe though not sure when this was. I dumped the image using the Flash configuration table the Bootloader prints to UART while booting, so I had a rough idea (based on the names) what to expect in which section.

Flash Configurations:
    FLASH_APPLICATION_SIZE    : 0x6d000
    FLASH_APPLICATION_ADDRESS : 0x10000
    FLASH_DATA_ADDRESS        : 0x7d000
    -- FLASH_TLS_ADDRESS         : 0x7d000
    -- FLASH_ENV_ADDRESS         : 0x7e000
    -- FLASH_SIGNED_IMAGE_ADDRESS: 0x7f000

Using this pin information I found the M467SJHAN (not the chip) from Nuvoton online which seemed like it would be a good fit, having pins for a EMAC and SWD in the correct places. With this guess for a chip I started to open the bootloader of the firmware in binaryninja which quickly confused me, as theEMAC registers did not match the Technical Reference Manual of that chip/family at all (more on firmware RE later). This then prompted me to search through the Nuvoton website again and find the M487SIDAE which had all pins at a correct looking place and even more than that, the register map did match (as far as I discovered) what I expected.

At this point I also had the idea if maybe SWD can help me find out which chip is used (I never used OpenOCD to reverse engineer MCUs, only to flash/debug them). After hacking around an openocd version that works with both Nuvoton and the pico debugprobe (as this is the only SWD flasher I easily have access to) I used this to read the SWD DPIDR which further confirmed this is an ARM Cortex-M4.

A quick overview over the pins we found.

(All of this is also available in a zephyr devicetree which we plan to use for the firmware: https://cyberchaos.dev/kloenk/unifree/-/blob/main/boards/unifree/usw_flex_mini/usw_flex_mini.dts)

I pretty much from the start said I wanted to use zephyr as I quite like the RTOS and it also should enable us to use mostly the same firmware on the USW-Flex-Mini and other ESP32 based switches.

Wanting to use zephyr I sadly had to realize that there is not reasonable support for the M487SIDAE which means we have to create this including clock controller driver and everything we need. Not wanting to do board/MCU bringup on a board I have no clear grasp on, I therefore looked if there is a EVT kit for the chip family and found the numaker_pfm_m487 but being somewhat short on money (for this project) I tried to find some way to maybe get it sponsored asking around both on fedi, but also trying to contact Nuvoton directly with the idea that they could maybe give it to me for using my free time to write support for the board in zephyr.

Trying to contact Nuvoton failed as their official support form (which they link to get access to evaluation kits) and also their live chat bot is just misconfigured (the chat bot just tells me to contact the owner to fix the configuration, but how though).

In the end I decided to spend my own money and get a board from DigiKey, which gave me the joy of seeing the packaging Nuvoton came up with. Which is a way to small non ESD plastic packaging which successfully ripped of a component of the board, but DigiKey was very easy to contact and they replaced it after seeing the pictures without any other questions.
